• GPS Receiver
  • Receiving frequency: L1 1575.42MHz (C/A CODE)
  • Receiving channel & tracking satellite: 16 channels & 16 satellites
  • Receiving type: Digital 16 channel multi tracking type
  • Receiving sensitivity: -143dBm
  • Navis 5100 5100Fccuracy Velocity: 10M 2D RMS(HDOP<2) (SA OFF) / 0.1kt RMS (HDOP<2) (SA OFF)

• PLOTTER
  • Display: 10.4"COLOR VGA TFT LCD
  • Resolution: 640×480 PIXELS
  • Projection: Mercator drawing
  • Effective range: below 85。of latitude
  • Way point: 20,000 points
  • Effective range: 0.25 mile ~ 5,000 mile (1/2000~1/37,500,000)
  • Tracking memory interval: 1sec~60minute (0.01~9,99NM) set-up
  • Tracking capacity: 20,000 points
  • Mark: Event mark: 21 kinds / Mark capacity: 10,000 points / capacity for user's drawing of shoreline : 8,000points 16 land coloring
    capacity for user's marking of shoreline: 1,000 points / capacity for user's character of shoreline: 1,000 points
    capacity for tracking marking: 1,000points / capacity for memory of destination:1,000points
    capacity for memory of route: 20 routes (20 points/1 route)
  • Display mode: normal, true-motion, course-up, north-up, head-up function
  • Alarm: 1) arriving alarm 2) off-course alarm 3) anchor alarm 4) boundary alarm Temperature: Antenna: -40℃ ~ +50℃, Main unit : -10℃ ~ +50℃
  • Interface: SAMYUNG, NMEA0183, FURUNO (CIF), JRC
  • Power supply: 50/200KHz 600W (dual)

• FISH FINDER (NAVIS5100F)
  • Operating frequency: 50/200KHz 600W (dual)
  • Display color:16 colors
  • Range of depth: 5~1,500M (depth of water, automatic output power control)
  • Range of bottom
    - enlargement of tracing: 10, 20, 40, 80M
    - enlargement of flatterned bottom: 2.5, 5, 10, 20, 40, 80M
    - partial enlargement: 5, 10, 20, 40, 80M
  • Shift speed: Stop, low speed, medium speed, fast speed, super fast speed
  • Information: depth, schools of fish, water temperature
  • Display of function: Sensitivity, attenuation, transmitting output, time marking, depth, variable scales, color patterns

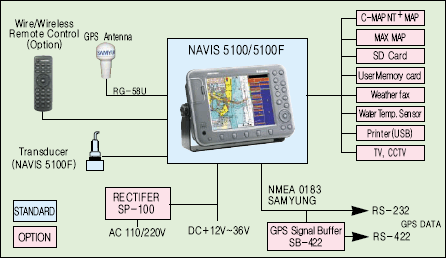

Components

• STANDARD
  • GPS LCD plotter 1SET
  • GPS antenna 1EA
  • Transducer for (NAVIS 5100F) 1EA
  • Installation materials, spare parts, manual 1LOT

• OPTION
  • SD card C-MAP NT+, MAX
  • Remote Controller
  • Power supply
